• The standard for DRIFTS.
• Efficient optics optimize diffuse reflectance collection.
• Easy sampling area access for reaction chambers.

• Diffuse reflectance environmental chamber.
• Withstands pressures from high vacuum to 3.44MPa.
• Heatable to 910°C.

• Reaction chamber for analysis of powders.
• Pressure range: 133 μPa to 3.44MPa.
• Heats to 910°C under vacuum.

• 500 µm diameter samling area with 45° diamond HATR
• Video imaging system

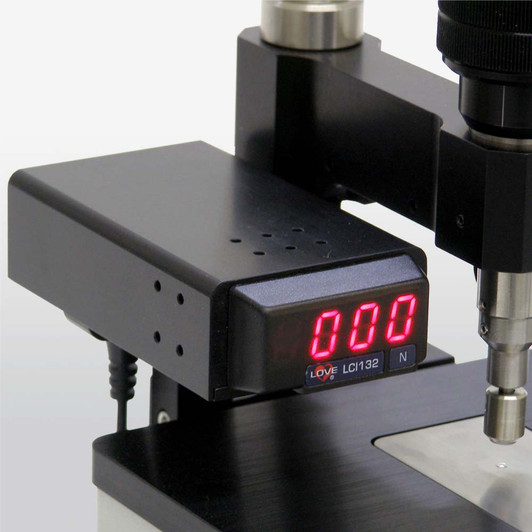

• Optional force sensor and heated cells.

• High performance low volume cell
• Diamond or Si ATR crystals
• Ambient, flow and heated liquids

• Interchangable solid and liquid samplers.
• Injection, flow and heatable/coolable cells.
• Purge enclosure.

• Ge HATR for monolayers on metals and semiconductors.
• Continuously variable from 60º to 65º.
• Options include:Wire Grid Polarizer.

• Continuously variable angle 5° to 85°.
• Specular and in-line diffuse.
• ATR options:  ZnSe or Ge Kit, oriented polymer holder.

• High throughput diamond ATR
• Interchangeable ZnSe, Ge, Si and FIR sampling plates
• Heated adapters solids

• Infrared grazing angle accessory
• Convenient horizontal sampling
• Built-in polarizer for high sensitivity

• Fixed horizontal specular reflectance accessories
• Incident angles: 12.5°,22.5°,30°,45°,60°

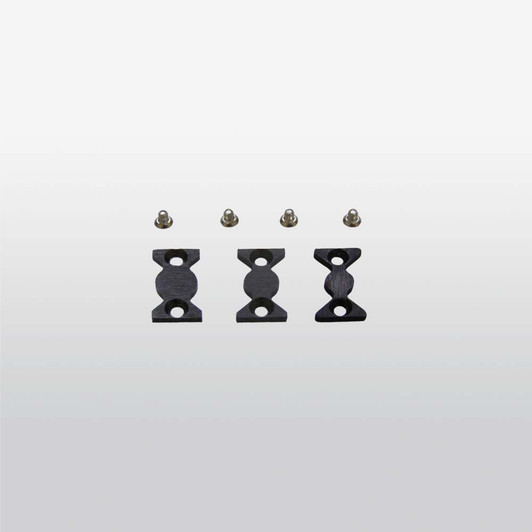

• Masks for examining small samples or small areas of large samples

• 8º incident angle
• Convienent horizontal sampling
• Masks accomodate various sample sizes

• Variable from 6µm to 5mm
• Withstands pressures up to 5 MPa
• Heated option for up to 240°C

• Pathlengths from 6 µm to 1mm.
• Leak-free design utilizes standard windows.
• Two ports for static or flow transmission measurements.

• Links benchtop spectrometers to fiber optic probes.
• Efficiently transmits light to and from probes.
• Use with visible, NIR and MIR fiber optic probes.

• 45° hand-held fiber optic probe.
• SMA connectors accept a vareity of fibers.
• Optional video imaging system.

• ATR fiber optic liquid probe.
• 6500 cm^-1 to 600 cm^-1.
• Operable to 100°C.

• Optimizes diffuse reflectance collection.
• SMA connectors accept a vareity of fibers.
• Optional viewing microscope offered.

• Provides accurate thermal regulation from -200 to 1250°C.
• Dual channel controller for standard or cascade operation.
• Software and USB adapter included for computer control.
• Up to 40 step profiles for ramp/s

• Diffuse reflectance chamber.
• Operates at temperatures from -150°C to 600°C.
• Pressure range: high vacuum to 133 kPa (1 ktorr).

• Pathlengths from 6µm to 1mm
• Temperature range:  0°C to 240°C
• Maximum pressure: 4.5 MPa

• Transmission reaction chamber.
• Heatable to 500°C.
• Sample size: 25mm dia. up to 10mm thick.

• Grazing angle specular reflectance reaction chamber
• Maximum temperature: 500°C
• Pressure range: 13 mPa to 203 kPa

• 10 cm path transmission gas cell.
• Maximum temperature:  260°C.
• Cell volume: 17 ml.

• High unimpeded liquid flow.
• Sensitivity tailored by changing pathlength.
• Ambient or temperature controlled.

• Microsampler for diamond or Si ATR spectroscopy.
• Calibrated pressure applicator.
• Temperature controlled options.

• Specular reflectance polarizer compatible accessory.
• Angular range: 30° to 85°.
• Options for absolute reflectance and horizontal sampling.

• Single-reflection 45° diamond ATR probe
• 6500 to 600 cm^-1 with CIR or PIR fibers
• Heatable to 140 °C

• Versatile transmission sample holder.
• Secures thin and flexible samples.
• Accommodates up to 38 mm long samples.

• Mounts films at Brewster's angle to reduce fringes.
• Variable angle for extraction of n, Κ and thicknesses.
• Polarizer compatible.

• Straightforward analysis of coated wafers.
• 45° ATR.
• High perfomance.

• Single reflection 45° ZnSe ATR.
• High throughput.
• Heated liquid cell available.

• Affordable single reflection ZnSe ATR.
• Easy to use - no alignment required.
• Liquid and solid sampling.

• Low cost DRIFTS and 60° specular reflectiance accessory.
• Downward model for powder analysis.
• Upward model for other solids.

• Wavelength range: 5000 cm^-1 to 285 cm^-1
• Wire grid on a KRS-5 Substrate
• High extinction ratio

• 45º diamond ATR, specular or diffuse reflectance
• Samples outside the sample compartment
• Video imaging system

• Optic table mount for demountable liquid cells, etc.
• Holds 2” x 3”x 0.125” slide plates.
• Metric M6 or English 1⁄4-20 mounting holes.
• Attaches with standard optical table posts.

• Everything needed to improve the surface finish of opticals.
• Convient for polishing and buffing NaCl, KBr and ZnSe windows.
• Glass plates with polishing pads and brush.
• Grinding and polishing compounds inclu

• For analysis of thick samples and coatings thereon
• Analyze samples up to 10 mm thick
• Angular range: 0° to 90°

• Compress solids against ATR crysatls repeatibly.
• 20 to 100 oz-in (141 mN-m to 706 mN-m).
• 2 oz-in (14 mN-m) increments.
• Free-wheeling.

• Calibrated Ge reference.
• Suited for extracting reflectivity or absolute reflectance.
• Suitable for use from 5000 cm^-1 to 400 cm^-1.
• Use with Harrick speuclar reflectance accessories.
$0.00
MSRP:
More Information

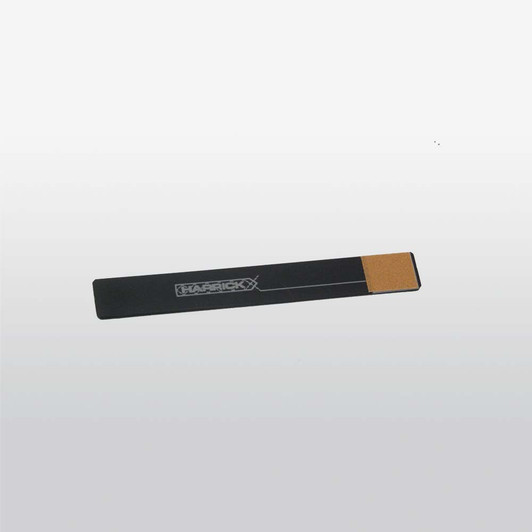

• Allows viewing of the infrared beam.
• Glows orange upon exposure to infrared.
• Alignment aid.
• 0.5" x 0.5" phosphorescent area.

• Wavelength range: 350 nm to 2300 nm.
• Extinction Ratio: <5x10^-5.
• Clear Aperture: 12 mm diameter.

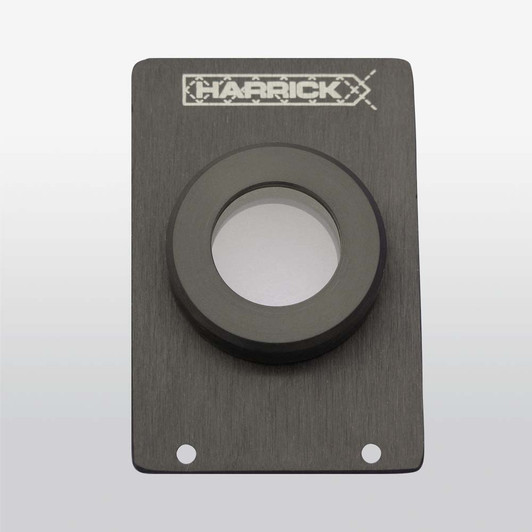

• Slide plate mounted in a rotatable holder.

• Spectral range: 300nm to 2700nm.
• Highly efficient, independent of polarization.
• 22mm diameter clear aperture.
• Length in the beam direction: 10mm.

• Wavelength range: 350 nm to 2300 nm.
• Extinction Ratio: <1x10^-5.
• Clear Aperture: 15 mm diameter.
• Slide plate mounted in a rotatable holder.

• Secures slide plate holders and accessories in the spectrometer.
• Permits positioning to optimize performance.
• Available for most FTIR and UV-Vis spectrometers.

• Holds standard 2" x 3" x 0.125” slide plates.
• Secures slide plate mounted transmission accessories.
• Use with Harrick’s Rail Mount.
• Available for FTIR and UV-Vis spectrometers.

These temperature controlled liquid cells clamp onto the DiaMaxATR for measurements of liquids at temperatures from 0ºC to 200ºC. They feature a cooling conduit for use with a chiller for below ambient applications and 24V heaters for high tempera

The TempLink software package simplifies spectral data acquisition for user-defined time and temperature profiles. It enables triggered data acquisition from select FTIR spectrometers at selected time intervals and /or temperature set points.
